Console design handoff

Kept with note 13, which accepts this design as the console's shape on 2026-09-05. Produced with Claude Design from the daemon's fixtures. The interactive HTML reference and its runtime stay outside the repository; the README below is the handoff's own text, unedited. Where it says Electron, note 5 as amended applies: the renderer is a page served by the daemon, Electron is an optional wrapper. Where it says "target", the console says "project". The hosts screenshot is omitted because it carries invented addresses.

Now view with a question thread and the resolved fold open

Now view filtered to one project

Board view

Shipped view grouped by day

Handoff: Holophyte Console (v0)

Overview

A web console for the Holophyte v2 software factory (repo wevial/holophyte). It answers, in order: what needs a human right now, what runs are on the floor and how they're doing, where tickets sit on the path to merge, and whether the hosts/daemons are alive. It reads the existing daemon JSON endpoints (/status, /runs, /attention on :7710) and, in v0, performs no writes — operator buttons are rendered but disabled.

Target: a desktop Electron app. The design is one screen (Holophyte Console v0.dc.html) with a left rail and four views; minimum window width ~1100px. No mobile layout is in scope.

About the Design Files

The files in this bundle are design references created in HTML. They show the intended look and behavior; they are not production code to copy. The job is to recreate these screens in the target codebase's environment using its established patterns. Holophyte currently has no web frontend (design note docs/design/0013-console.md leaves the shape open), so the Electron renderer can use whatever UI stack the team prefers; keep the daemon's JSON as the only data contract.

Fidelity

High-fidelity. Colors, type, spacing and interaction states are final. Data shown is invented but shaped exactly like the daemon fixtures in tests/fixtures/drawer/*.json.

Screens / Views

Shell

  • Frame: paper #f4f1ea background. Left rail 220px, #1d1b17, padding 18px 14px, gap 22px between groups. Main area fills the rest and scrolls vertically.
  • Rail contents, top to bottom:
  • Logo (assets/menubar-template.svg, 20px, inverted) + "Holophyte" 15px/700.
  • Targets group: uppercase 11px label (#8a8275, letter-spacing .08em). Items: "All targets" (selected: rgba(244,241,234,.12) bg, radius 7px) then one row per target with status dot 9px, name 13px/600, sub-line "host · supervisor state" 11px #a89f90, run count mono 11px right-aligned.
  • Views group: Now (with amber count badge: oklch(0.72 0.15 70) bg, #1d1b17 text, mono 11px, pill), Board, Hosts, Shipped. Selected style same as targets. Buttons 13px/600, padding 8px, unselected text #c9c1b3.
  • Hosts footer (margin-top auto): one card per host, rgba(244,241,234,.06) bg, radius 8px, padding 10px. Row: dot 8px, name 13px/600, right mono 11px ":7710 · hb 12s". Second line mono 10px #8a8275 "daemon up 3d 4h · 3 runs". A host with a stale supervisor gets a 1px solid oklch(0.58 0.2 25 / .5) border, a pulsing red dot and red heartbeat text oklch(0.75 0.14 25). Below: "polled 3s ago" mono 11px.

Now view (default)

  1. Needs-you band — oklch(0.96 0.03 70) bg, bottom border oklch(0.85 0.08 70), padding 18px 24px 0.
  2. Headline row: count in mono 34px/700, "things need you" 20px/600, "oldest 3h 02m · KO-227" 13px #6e675c. Right: filter chips (All 7 / Questions 2 / Stale runs 2 / Failed 2 / Supervisor 1): 12px/600, padding 5px 10px, pill; selected #1d1b17 bg + #f4f1ea text; unselected transparent + 1px solid #d8d1c4 + #6e675c.
  3. Rows: grid 96px 84px 1fr 60px auto, gap 14px, padding 12px 0, top border oklch(0.9 0.05 70). Cells: kind pill · ticket (mono 13px/600) with target under it (11px #8a8275) · body 13px/1.4 with meta line 12px #8a8275 under it · age mono 12px right-aligned · disabled action buttons.
  4. Kind pills (mono 11px/600, padding 3px 8px, radius 5px): question oklch(0.93 0.06 70)/oklch(0.4 0.12 70); stale run, failed, supervisor oklch(0.93 0.05 25)/oklch(0.45 0.16 25).
  5. Cap at 4 rows; "Show all N" / "Show fewer" toggle (13px/600, oklch(0.45 0.12 70)) when more exist. Filter changes reset the cap.
  6. Question rows are clickable (cursor pointer, "thread ▾" hint after meta). Expanding shows a thread card indented 110px: rows 64px 1fr auto of who (mono 12px/600 #6e675c) / text 13px / time mono 11px, then a footer (#faf7f1) with a disabled answer field placeholder and disabled "Answer & resume" button.
  7. Resolved today fold — #faf7f1 strip, 9px 24px padding, chevron + "Resolved today · 5" 12px/600 + "median wait 14m · longest 41m". Expands to rows 96px 84px 1fr 80px 60px 50px: kind pill, ticket, how it was resolved, "waited Xm", by whom, time.
  8. Floor — heading 20px/600 + "4 runs · 2 targets". One block per target: card #fffdf9, border #e3ddd2, radius 10px. Header #faf7f1: dot, target name 15px/600, path mono 12px, "on host · supervisor live · hb 12s" (supervisor text green oklch(0.45 0.12 150) mono, or red oklch(0.5 0.18 25) bold when stale).
  9. Run rows: grid 20px 64px 110px 1fr 120px 220px 90px, gap 12px, padding 11px 16px, hover #f7f3ec. Cells: chevron ▸/▾ · #id mono #6e675c · ticket mono 13px/600 · title 14px ellipsis + optional strike pill · phase pill · time-box bar (6px track #e9e4da, fill teal oklch(0.62 0.16 200), amber oklch(0.72 0.15 70) over 70%, red oklch(0.58 0.2 25) at/over 100%) with "12m 34s / 30m" mono 12px · heartbeat mono 12px (green oklch(0.45 0.12 150); stale: red oklch(0.5 0.18 25) 600).
  10. Phase pills: implementing oklch(0.93 0.04 200)/oklch(0.4 0.12 200), reviewing oklch(0.93 0.05 300)/oklch(0.42 0.14 300), verifying oklch(0.93 0.05 150)/oklch(0.4 0.12 150).
  11. Strike pill: "strike 1/3" amber colors; "strike 2/3" red colors. Hidden at 0.
  12. Expanded run detail (one open at a time; #91 open by default) — card inset 0 16px 14px 44px, border #e3ddd2, radius 10px.
  13. Header line: "Round 2 of 3 · review in progress" 13px/600, "started 12:02 · writer · pid 5120" 12px, right "17m 26s left in box" mono 12px.
  14. Round timeline: 22px tall flex bar, radius 6px, 3px gaps. Segments sized by duration as a share of the time box: implement/fix teal oklch(0.62 0.16 200), review purple oklch(0.55 0.14 300), verify green oklch(0.6 0.14 150); the running segment pulses (opacity 1→.35, 1.6s ease-in-out infinite); remaining box #ebe6dc. Under each segment: label 12px/600 + duration mono 11px #8a8275.
  15. Two columns 1fr 280px, gap 28px:
    • Open findings: label row (uppercase 11px + "1 must · 1 should" mono). Cards #fffdf9, border, radius 10px, padding 14px 16px, shadow 0 1px 2px rgba(40,30,10,.05): severity pill (must red, should amber, nit #ebe6dc/#6e675c) + file path mono 12px teal oklch(0.5 0.14 200), then text 14px/1.45. Below: disabled "Kill run", "Requeue ticket".
    • Files touched: label + "12 · +156 −86". Mono 12px list in #f4f1ea box radius 8px: grid 14px 1fr auto of status letter (M grey, A green, D red) · path ellipsis · +adds green / −dels red. Capped at 6 with "Show all 12 files" / "Show fewer" (12px/600 teal).
  16. Run log footer: #1d1b17 bar, mono 12px. Header button: chevron, "RUN LOG" uppercase 12px #a89f90, summary "6 events · last: heartbeat 4s ago", right time range. Collapsible (open by default); rows 52px 1fr time #8a8275 + text #c9c1b3.

Board view

  • Heading "Board" 20px/600 + "12 open tickets · left to right is the path to merge".
  • 5 columns repeat(5, minmax(0,1fr)), gap 12px: needs_spec · blocked_on_deps · ready · blocked · in progress. Column header: dot + label 12px/600 + count mono 11px. Column body #ebe6dc, radius 10px, padding 8px, min-height 120px.
  • Cards #fffdf9, border, radius 8px, padding 10px 12px, gap 6px: ticket mono 12px/600, optional phase/question pill, optional strike pill, target 11px right; title 13px/1.4; in-progress cards add a 5px time-box bar; sub-line mono 11px #8a8275 (e.g. "waits on KO-240", "#91 · 12m 34s / 30m · hb 4s").
  • Shipped today table beneath: heading 15px/600 + "6 merges · median 2 rounds". Grid 56px 90px 1fr 70px 60px 70px 200px 80px: merged time, ticket, title, target, rounds, findings, actual vs time box (6px bar: green ≤80%, amber >80%, red over; "18m / 30m" mono 11px; delta "−12m" green / "+8m" red), sha mono teal.

Hosts view

Heading "Hosts & daemons" + "2 hosts · 2 daemons on :7710". Two-column grid of host cards (#fffdf9, border #e3ddd2, radius 10px, padding 18px): header row dot + name 17px/600 + address mono 12px + OS right-aligned 12px; 3-column grid Daemon (uptime) / Supervisor (state · pid · hb, green mono or red bold when stale) / Runs; Targets list (name 600, path mono, note right); footer with disabled "Restart supervisor" and "Open daemon log". Filtered by the rail target.

Shipped view

The full merge ledger, newest first, grouped by day. Heading "Shipped" + "13 merges · last 3 days · median 2 rounds". One table (same columns as Shipped-today on the Board) with a day sub-header row per group (#faf7f1, "Today · Fri Sep 5" 12px/600 + "6 merges" mono 11px). Page/scroll for older days; filtered by the rail target.

Interactions & Behavior

  • Rail Views switch the main area (Now / Board / Hosts / Shipped). Rail Targets filter every view to one target or all — the needs-you count, filter chip counts, floor blocks, board cards, shipped rows and host cards all narrow accordingly; the "All targets" count is total active runs.
  • Needs-you: filter chips filter by kind; "Show all" toggles the 4-row cap; question rows toggle their thread.
  • Resolved-today fold toggles.
  • Run row click toggles its detail; only one open per view. Files "show all" and run-log collapse are per detail.
  • Hover on rows: #f7f3ec. No other animation besides the pulse on live segments/dots.
  • All write actions (Answer, Requeue, Kill run, Restart supervisor, Edit ticket, Mark needs_spec) are disabled with tooltip "Writes arrive later behind a token".
  • Poll the daemon(s) every ~10s (matches the SwiftBar drawer cadence); show "polled Ns ago" in the rail.
  • Window: fixed rail, main area scrolls; enforce a ~1100px minimum window width in Electron.

State Management

  • view: now | board | hosts | shipped
  • target: all | target id
  • attentionFilter: all | blocked | stale_run | failed | supervisor; attentionShowAll; openQuestion (ticket)
  • resolvedOpen
  • expandedRun (run id | null); filesShowAll; logOpen
  • Data: per host, GET /status (supervisor, thresholds, runs), GET /runs (recent, with rounds/findings/events per run), GET /attention (items with kind, level, ticket, run, question/reason, heartbeat_age_ms, ended_ms). Derive: heartbeat staleness from thresholds.heartbeat_stale_ms; time-box % from elapsed_ms / time_box_ms; strikes from ticket history vs thresholds.strikes; "oldest" from now - asked/ended.
  • Not yet in the daemon (needs new fields or endpoints): question threads, resolved-today history, files touched with line counts, per-round durations, host daemon uptime.

Design Tokens

  • Paper #f4f1ea · card #fffdf9 · card header #faf7f1 · hover #f7f3ec · line #e3ddd2 · faint line #eee9df · track #e9e4da · column well #ebe6dc
  • Ink #1d1b17 · body #3b362f · muted #6e675c · faint #8a8275 · on-dark muted #c9c1b3 / #a89f90
  • Accent teal oklch(0.62 0.16 200) (links oklch(0.5 0.14 200)) · ok green oklch(0.6 0.14 150) / text oklch(0.45 0.12 150) · warn amber oklch(0.72 0.15 70) / bg oklch(0.93 0.06 70) / text oklch(0.4 0.12 70) · bad red oklch(0.58 0.2 25) / bg oklch(0.93 0.05 25) / text oklch(0.45 0.16 25) · review purple oklch(0.55 0.14 300)
  • Type: Instrument Sans (400/500/600/700) for UI; JetBrains Mono (400/500/600) for ids, times, shas, counts, pills. Sizes 10/11/12/13/14/15/17/18/20/30/34/40.
  • Radii: pills 5px (99px for round chips), buttons 6–7px, cards 8–10px, frame 12px. Shadows: card 0 1px 2px rgba(40,30,10,.05); frame 0 20px 50px rgba(40,30,10,.12).
  • Spacing: 4/6/8/10/12/14/16/18/20/22/24/28.

Assets

  • assets/logo.svg, assets/menubar-template.svg — from the repo wevial/holophyte.
  • Fonts from Google Fonts: Instrument Sans, JetBrains Mono.
  • Fixtures: tests/fixtures/drawer/*.json (daemon response shapes).

Screenshots

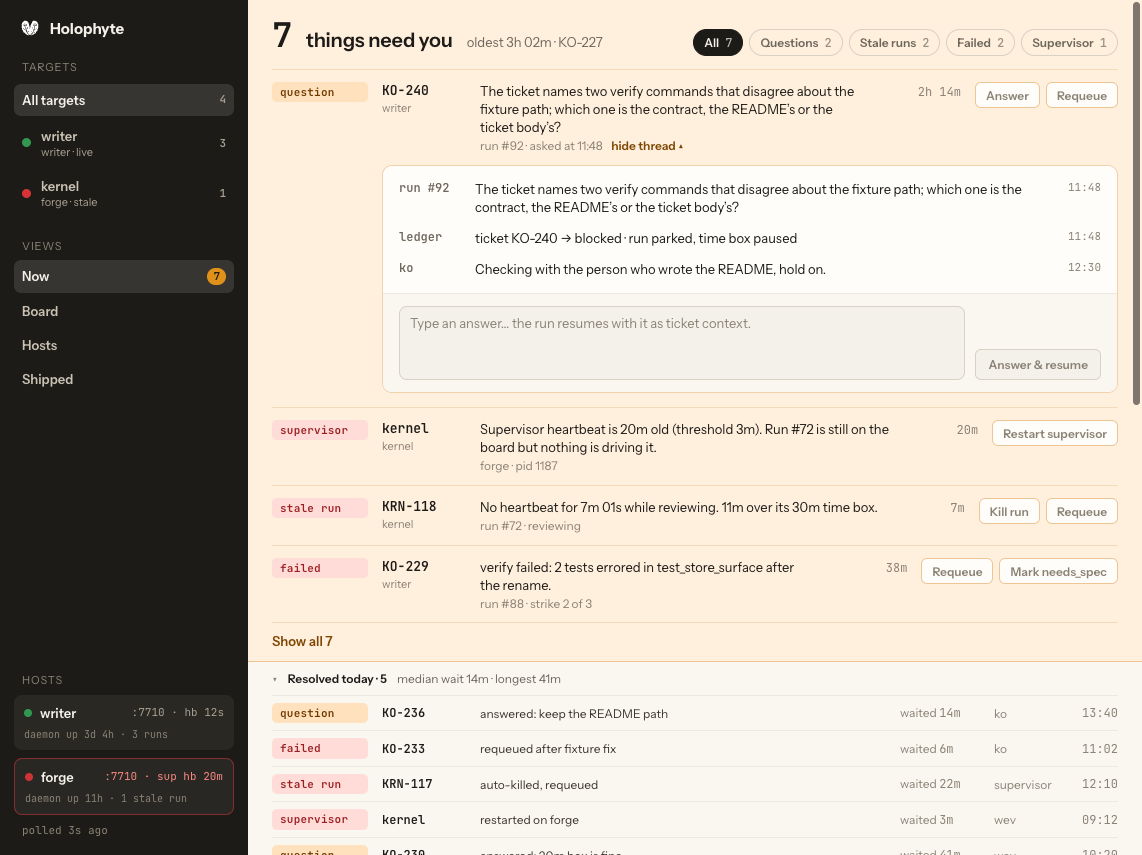

  • screenshots/now-thread-resolved.png — Now view, all targets, KO-240 question thread open, Resolved-today fold open, run #91 expanded

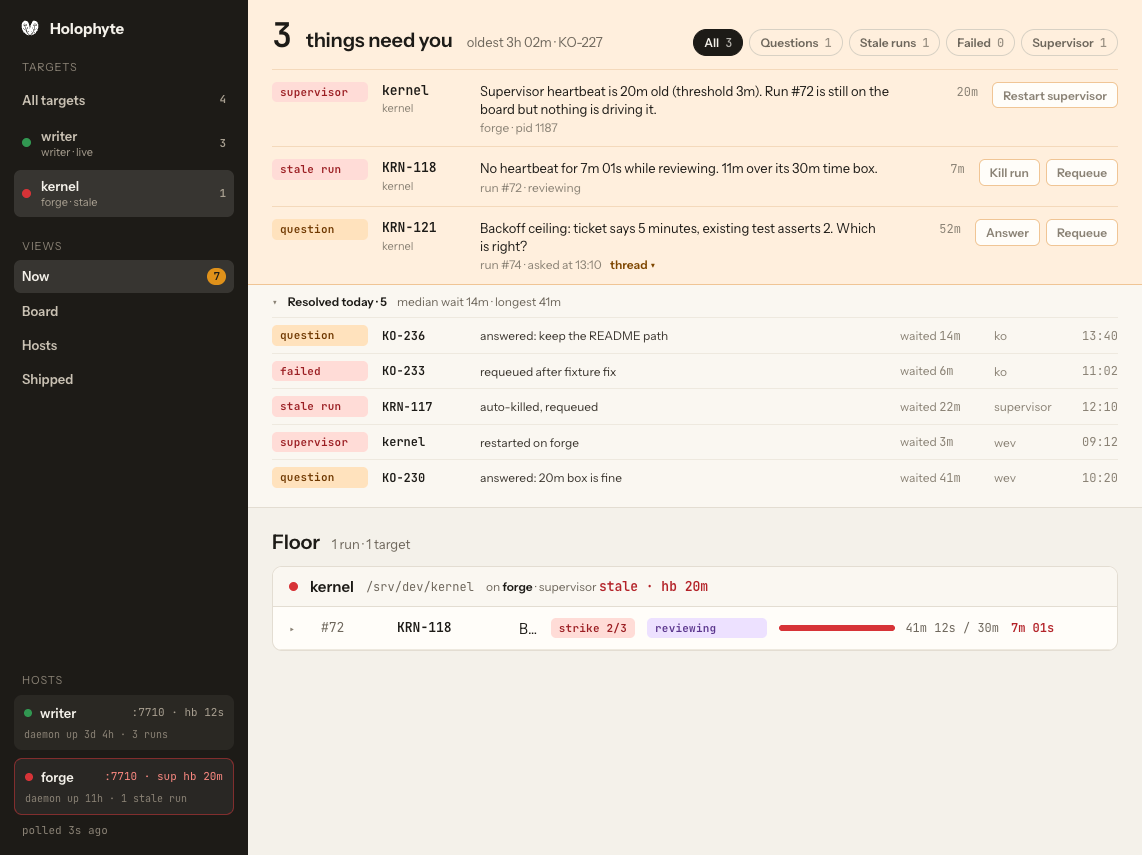

  • screenshots/now-target-kernel.png — Now view filtered to the kernel target

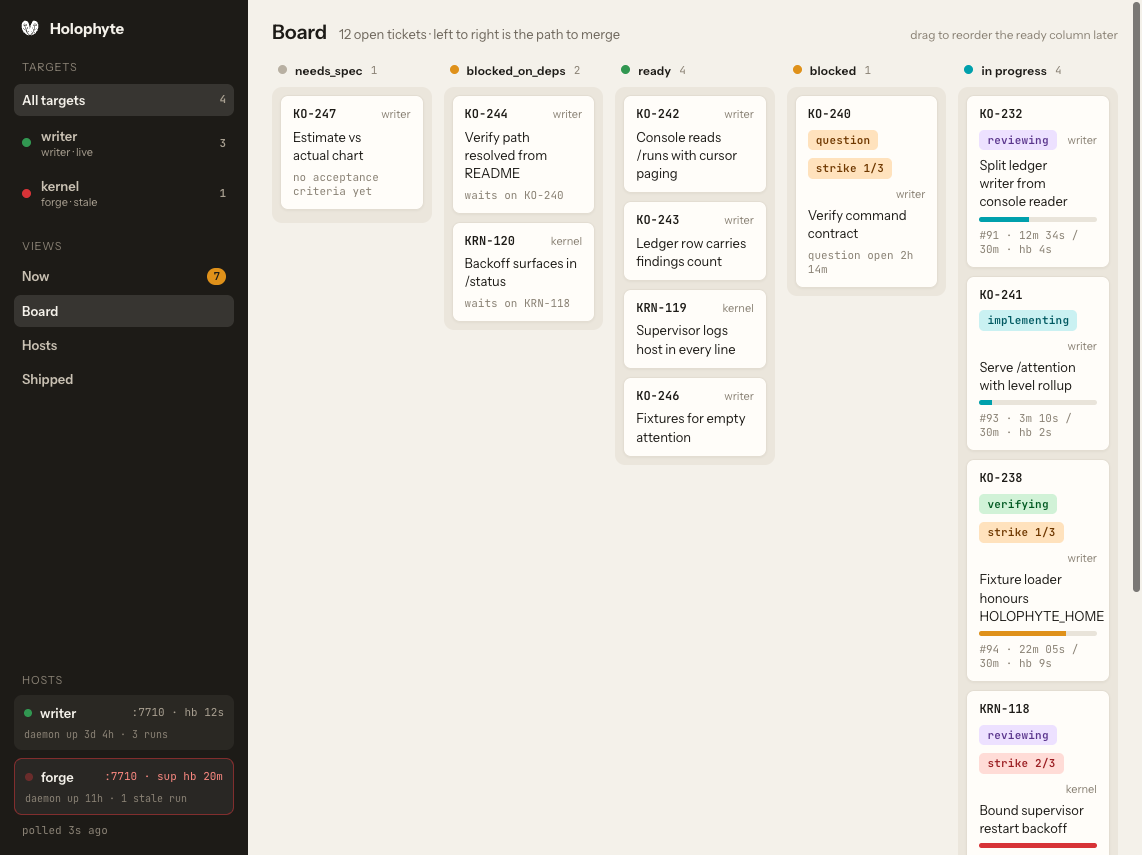

  • screenshots/board.png — Board view with Shipped-today table
  • screenshots/hosts.png — Hosts view

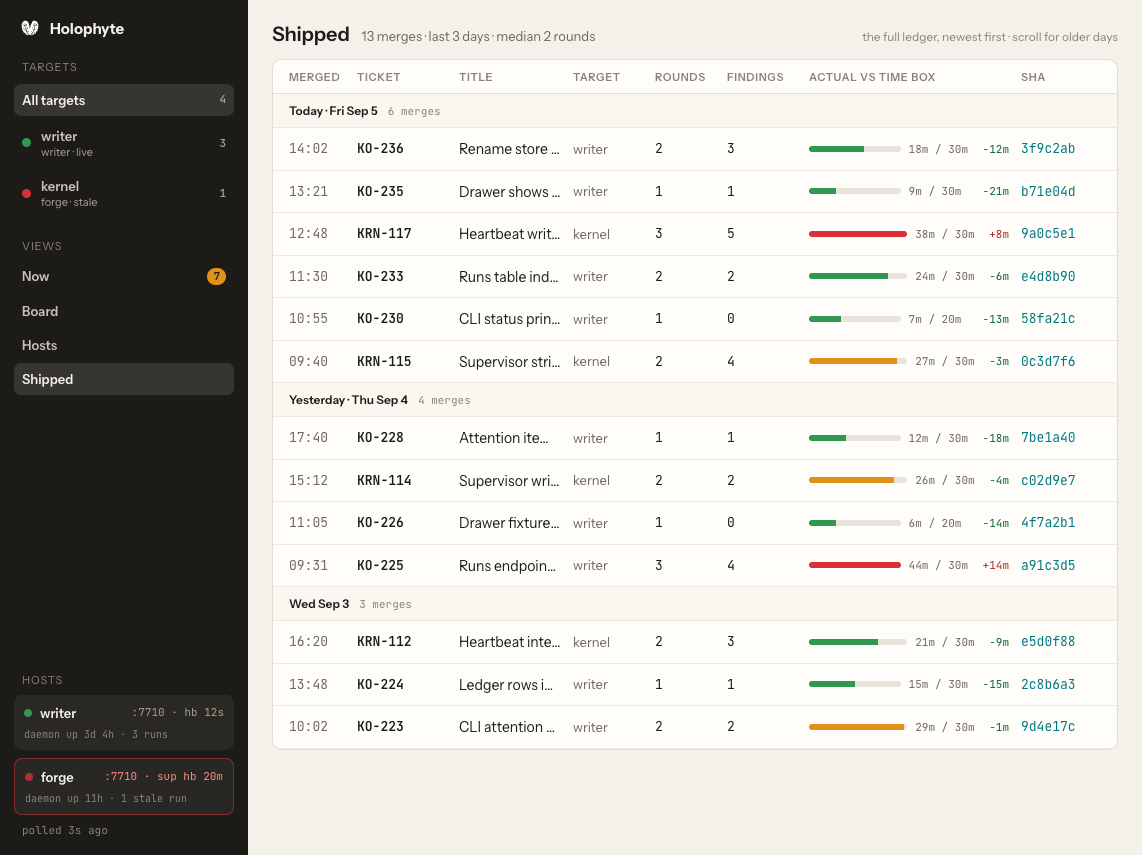

  • screenshots/shipped.png — Shipped view, grouped by day

Files

  • Holophyte Console v0.dc.html — the design: one screen, all four views switchable in the rail.
  • support.js — runtime for the design file (not for production).
  • assets/, tests/fixtures/drawer/ — copied repo assets and fixtures.
